Creating a Lookup Text File

You can add new Info Fields to a model by using a lookup file, which can be a manually built text file or a text file generated from a spreadsheet or relational database. To associate a text lookup file with a dimension name in a DivePlan, the Closedfile must have a specific structure.

A lookup file has the following characteristics:

  • The file is located on the DiveLine server
  • File is tab delimited
  • The first row of the file contains column names

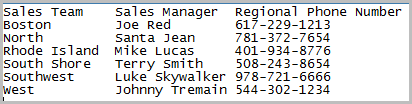

  • Dimension values appear in the left-most column. For example, Boston and Rhode Island are dimension values for Sales Team.
  • Info Fields that you want to add to the model appear in additional columns from left to right. For example, Sales Manager and Regional Phone Number.

A lookup file created in a spreadsheet has a familiar columnar appearance.

YearMo is the dimension column and Quarter and Qn are the Info Field columns. If you dive on YearMo in a Diver client, the values for Quarter appear in the console, even though this Info Field is not included in the model.

Note that if you create a Lookup File using a spreadsheet, remember to save the spreadsheet as a tab delimited flat file.

Complete the following steps to add the salesperson lookup file to a DivePlan:

  1. Open Workbench, connect to a server, and open a project.

  2. From the models directory, select a DivePlan where one or more of the models contains the Salesperson dimension, and select Open with > DiveMaster.

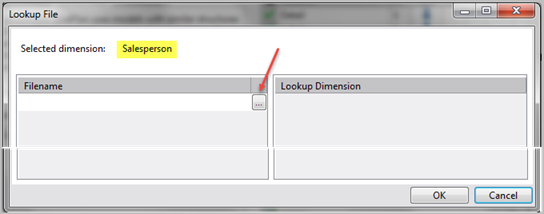

  3. To add the sample lookup file, click L across from the Salesperson dimension to open the ClosedLookup File dialog box.

  4. Click the ellipsis in the Filename section to open the Select File dialog box where you can browse to and select a lookup file to attach. Lookup files typically reside in the same directories as models. For example, Closedthe lookup file named salesperson_2col_lookup.txt contains the Info Field or lookup dimension Sales Manager.

  5. Click OK to Closeddisplay the new value in the Info category of DiveMaster.

The display format is <Lookup Dimension>:<Core Dimension>. When you open this DivePlan in ProDiver, you see the Sales Manager: Salesperson value in the Info category of the console.
