Expand Set Code Samples

Here is an example of an expand-set used in a definitions block.

  expand-set id = "expand_cost" {
    take-parameter "summary"
    expand "Cost" {
      text column = "$(summary) Y"
      text column = "$(summary) Y Y-1"
      text "% Chg" column = "$(summary) Y Y-0 % Diff"
    }
  }

Here is an example of the expand-set referenced in a report page.

  report-page {
    title "Report Page Expand Set"
    cplan "/cplans/basic_timeseries.cplan"

    dimension "Corporate Brand"
    dimension "Corporate Supplier"

    text column = "Cases" {
      expand-set id = "expand_cost" {
        pass-parameter "summary" "Cost"
      }
    }
  }

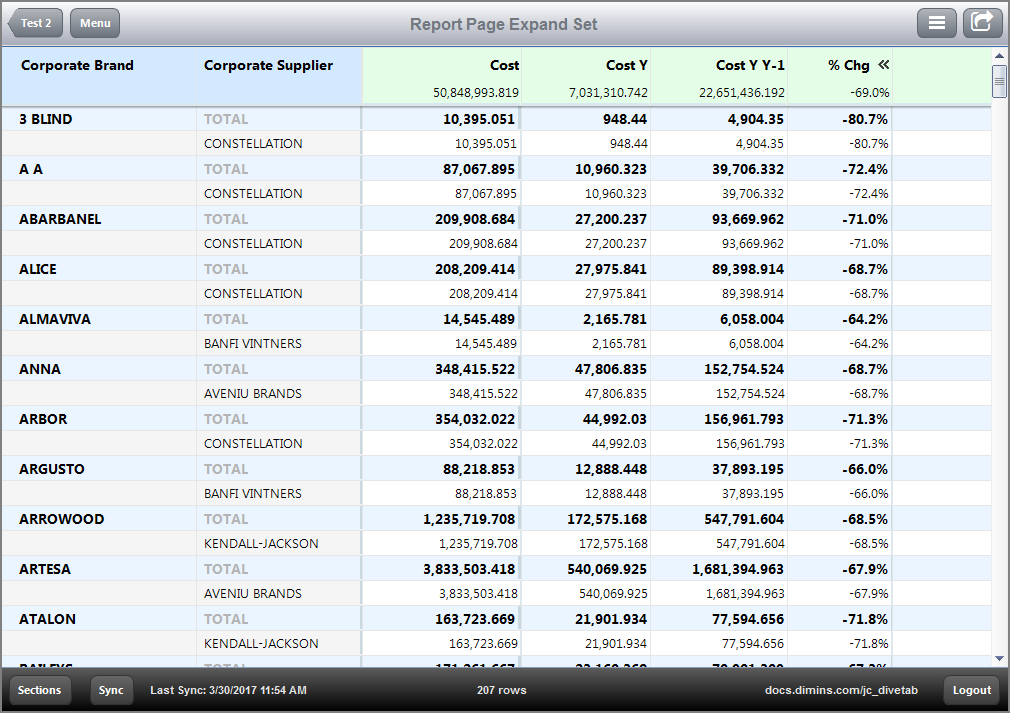

Here is the result of the code in DiveTab with the expand-set open.

Here is an example of an expand definition as part of a column-set.

  column-set id = "Quarters" {
    text column = "Cases" {
      expand "Past Years" {
        text "Cases Y" column = "Cases Y"
        text "Cases Y-1" column = "Cases Y Y-1"
        text "Cases Y-2" column = "Cases Y Y-2"
      }
    }
  }

Here is an example of the above column-set used in an ad hoc page.

  ad-hoc-page id = "ad-hoc" {
    title "Basic Analysis"
    cplan "/cplans/basic_timeseries.cplan"

    dimension "Corporate Supplier"
    dimension "Corporate Product Group"
    dimcount-dimension "Resp SalesPerson"
    dimcount-dimension "Customer"

    column-set id = "Quarters" {
      pass-parameter "summary" "Cases"
    }
  }

Here is the result of the code in DiveTab with the column expanded. The dimcount-dimensions are collapsed.
